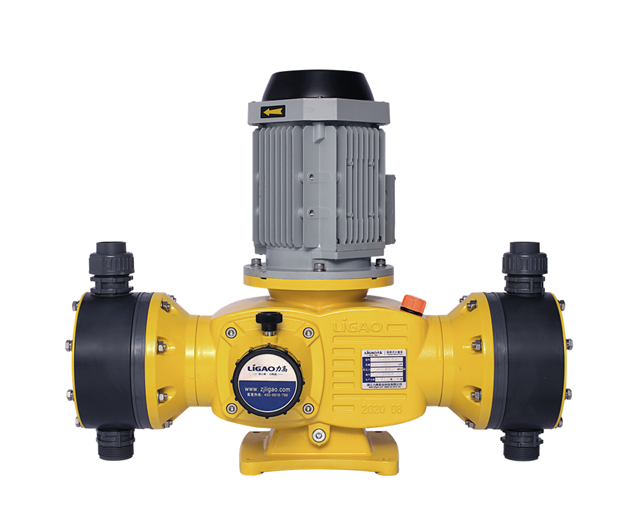

GB-S Mechanical Diaphragm Metering Pump

   GB-S mechanical diaphragm metering pump is high flow duplex heads electric powered chemical pumps. It is also robust and compact design which is easy for installation and cost effective. The duplex heads can reduce the pulse and energy. It is capable of dosing flow rate up to 3600lph and pressure up to 7 bars.

 Specifications:

• Capacity range: 1360 l/h -3600lh under 50Hz;

• Pressure range: 3-7 bars;

• Max Processing Temperature: from 0-70℃ (158℉);

• Stroke Adjustment: 0-100%;

• Suction lift: 1.5m;

• Accuracy: ±2% of set point;

Materials:

• Pump head: PVC, PVDF,SS304,SS316 ;

• Diaphragm: Composite PTFE diaphragm;

• Check Valve: PVC, PVDF,SS304,SS316 (same as pump head selection);

• Valve ball: Ceramic, SS304,SS316;

Power Supply:

380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.

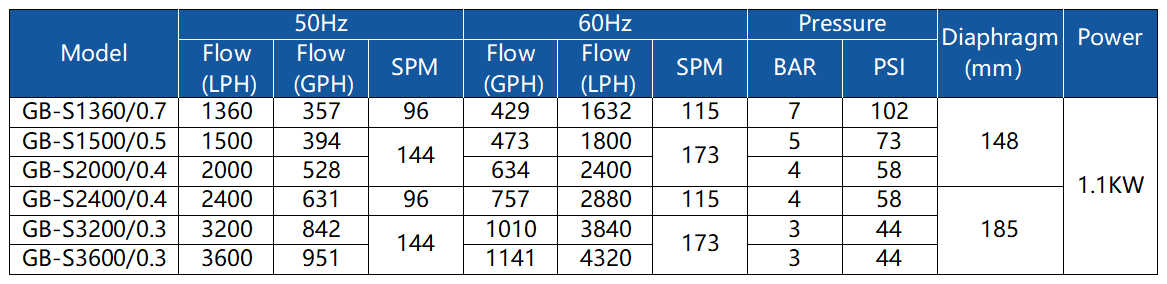

Parameter:

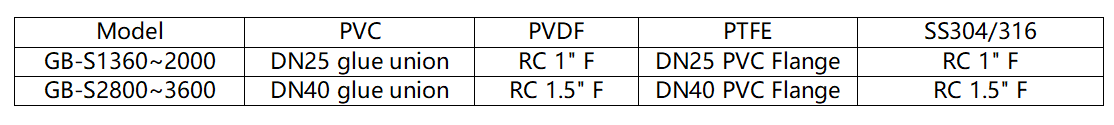

Connection:
