Product Description
● Max Flow：Qmax=2600L/H@50Hz;3120L/H@60Hz
● Max Pressure：Pmax=15MPa
● Accurancy: ±1%
● Head and Check Valve Material : SS304;SS316L;Others on request
● Diaphragm Material : PTFE( Pressure 30Mpa and below)
● Ball Material :SS316
● Gasket Material :PP(Standard); PTFE（Temperature 100-150° C）；Copper( Temperature above 150 ° C)
● Liquid temperature range : -20.+110 ° C (SS304/316L);
● Power: standard IE3 380V 50Hz 3ph ; others on reqest;VFmotor; Explosion-proof Motor
● Double diaphragms options: With pressure gage/pressure sensor/alarms

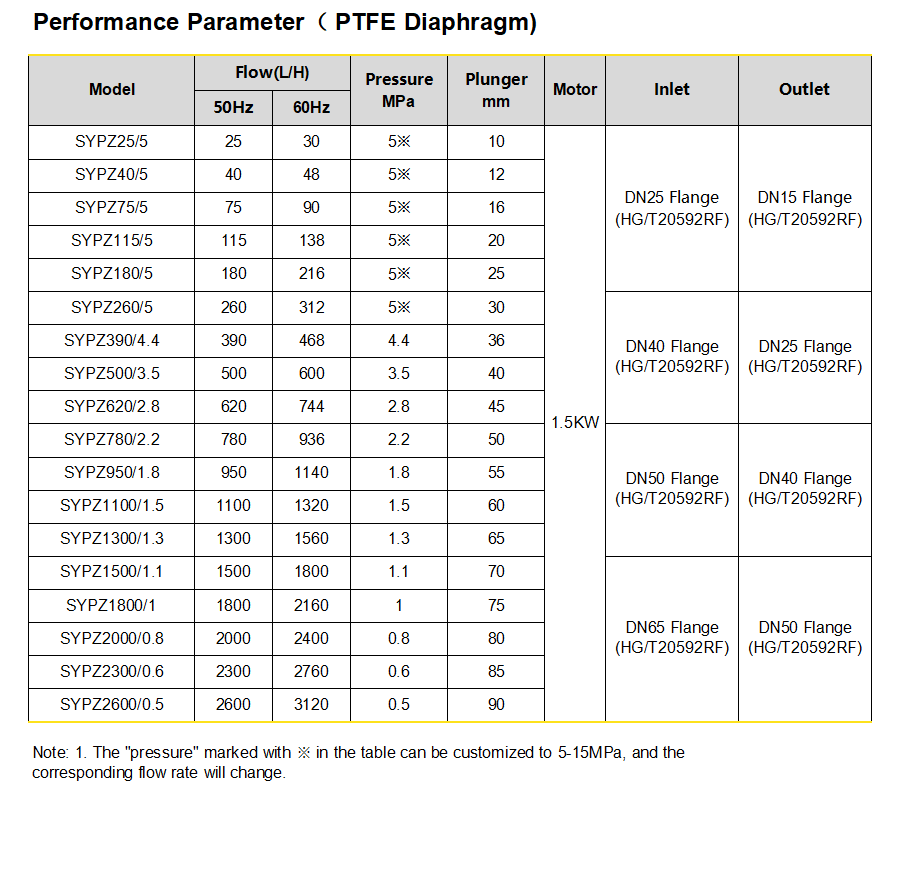

![S$]AEYT_V~AG8C[(49$T7KD](http://iqrorwxhrjjrlj5o.ldycdn.com/cloud/pkBpnKplRlkSqnomnnlkl/S-AEYT_V-AG8C-49-T7KD.png)
