JPZ Plunger Dosing Pump

   JPZ series high performance plunger dosing pump is fully engaged mechanism for heavy duty use. The unique adjusting mechanism make the pump smoothly adjust from 0-100%. It has precise dosing capability even at maximum pressure. The motor can be both vertical and horizontal installed. Multiplex gear box with one motor drive and pump base is available.

Features:

• Flow rate can be adjusted via unique adjusting mechanism from 0-100%;

• The adjustment can be carried when pump is in operation or at stop;

• The steady accuracy is ±1% from 30%-100% of the maximum output;

• Automatic operation is achieved by variable speed drive;

• Special application for high temperature or low temperature is available with cooling jacket or heating jacket;



Materials:

• Pump head: SS304,SS316;

• Pump case: Cast Iron;

• Plunger: Ceramic or SS316 coated with ceramic;

• Packing seal: PTFE and SS316 Ring;

• Valves: SS304,SS316;

• Valve Ball: SS304,SS316, Ceramic;




Power Supply:
Power:  0.75kw IEC80 4 pole Motor

380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.

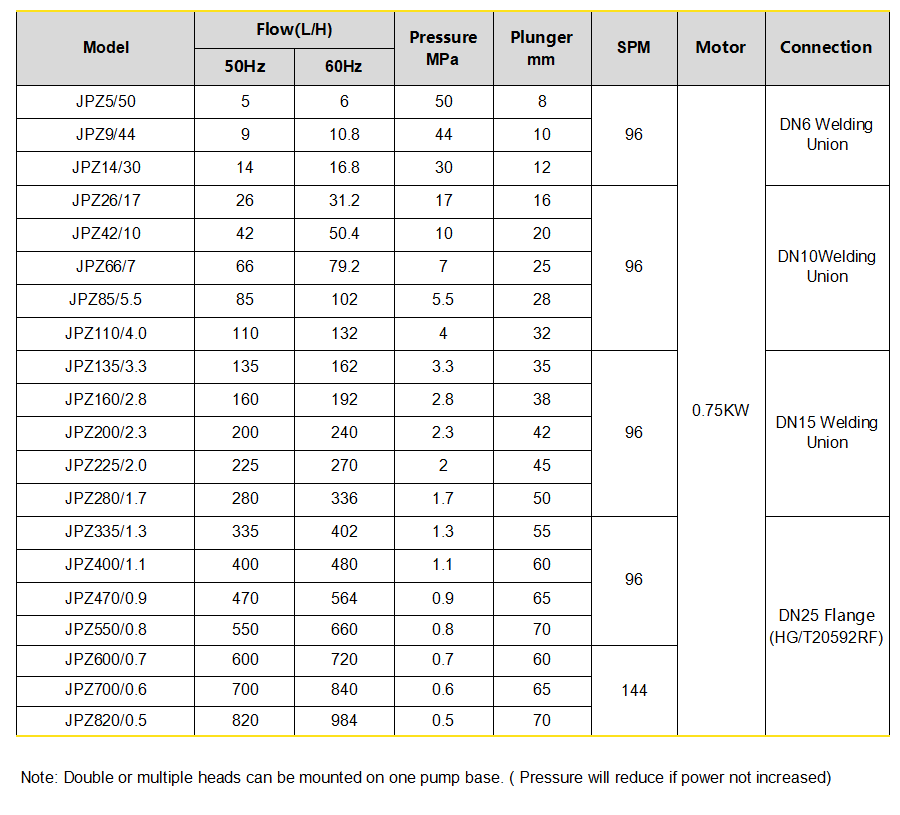

Parameter:
